The spindle is a multi drilling unit with 3 drilling tools (1 vertical and 2 horizontal – left and right), and is capable to drill automatically different diameter for each side of the profile without any reposition of the profile or tool changing.

• Designed with high precision linear guideways
• Driven by AC servo motors with high precision ballscrews

The automatic lock system have 2 components, a vertical lock device and one horizontal which are CNC controlled and act in the same time giving a very high rigidity for the profile to be drilling.

The base is a welded high duty steel structure which includes feeding rollers, lock system, measuring unit and drilling bridge

• Friendly and simply to use CNC screens
• Windows base interface
• Touch screen monitor
• Easy programming and storage function
• USB interface with possibility to import CAM files from a memory stick

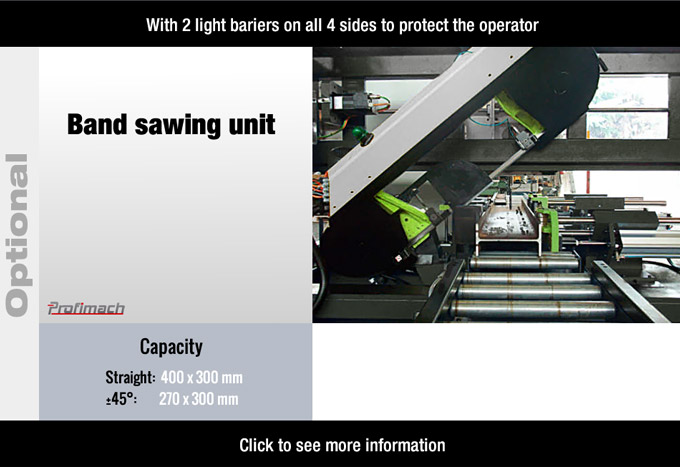

Optional, on request a band sawing unit could be placed on the same line, for cutting straight or angle (-45° +45°) the profiles to be processed.

The cycle cut will be completely automatic and the same CNC will manage the angle and the cut cycle.
