C-Frame Single Crank - Single Point Press
With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of the mechanical precision. C-Frame Single Crank Presses are widely used in electronics, communications, computers, household appliances, transport (automobiles, motorcycles, bicycles), metal parts stamping and forming etc..
| Parameter | Unit |
| Nominal capacity | tf |
| Stroke | mm |
| Variable speed stroke | s.p.m |
| Die setting height | mm |
| Die height adjustment | mm |
| Throat depth | mm |
| Distance between uprights | mm |
| Table size | mm |
| Bottom size of slide | mm |
| Power of motor | kW |
| Overall dimension(LxWxH) | mm |
| Weight | kg |
EPMC-25A 26 10.5-100 70-120 250 50 185 440 700x350 460x270 3/2.2 1440x1000x2450 3000
Other Machines

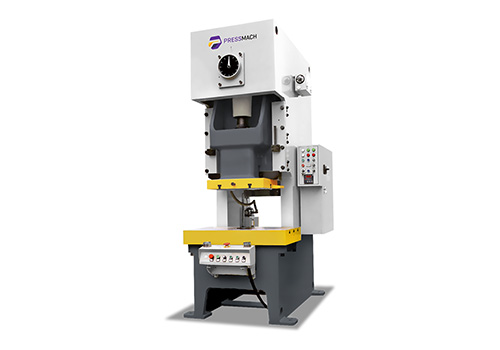

high precision fixed stroke

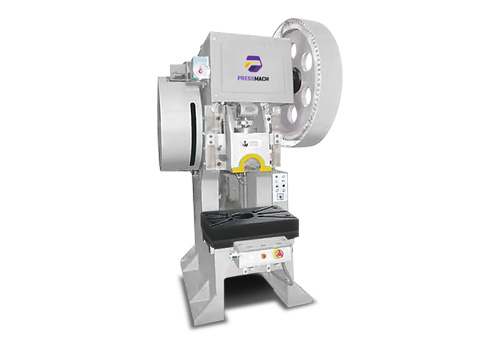

fixed stroke
