C-Frame Single Crank - Single Point Press
With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of the mechanical precision. C-Frame Single Crank Presses are widely used in electronics, communications, computers, household appliances, transport (automobiles, motorcycles, bicycles), metal parts stamping and forming etc..
| Parameter | Unit |
| Nominal capacity | tf |
| Stroke | mm |
| Variable speed stroke | s.p.m |
| Die setting height | mm |
| Die height adjustment | mm |
| Throat depth | mm |
| Distance between uprights | mm |
| Table size | mm |
| Bottom size of slide | mm |
| Power of motor | kW |
| Overall dimension(LxWxH) | mm |
| Weight | kg |
EPMC-45A 45 11.5-110 60-100 290 70 235 510 800x450 500x300 5.5/5.5 1790x1070x2600 4200
Other Machines

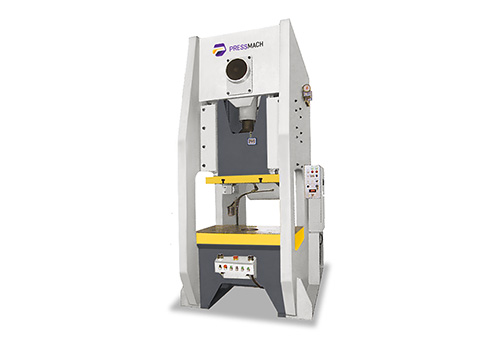

fixed stroke
