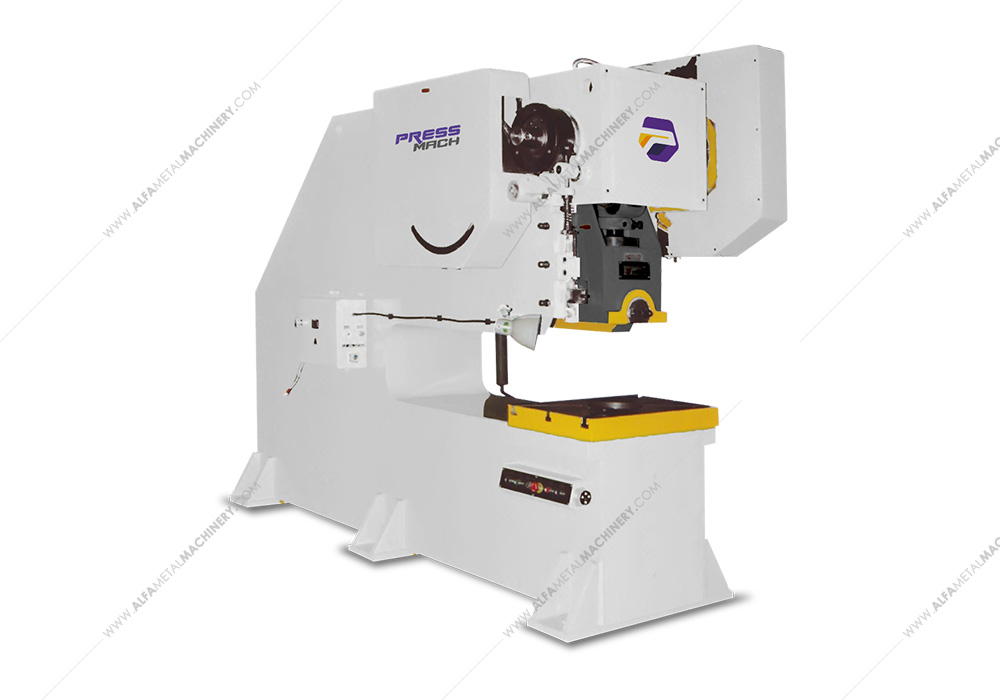

C-Frame Single Cross Crank - Single Point Press
Steel welded frame, high rigidity and less deformation. The stronger cast iron base, to reduce vibration and noise and improve the working environment. Pneumatic combination friction clutch-brake, low noise, long service life, large clutch torque and small braking angle, ensure reliable safety and flexible action.
| Parameter | Unit |
| Nominal capacity | tf |
| Stroke | mm |
| Variable speed stroke | s.p.m |
| Die setting height | mm |
| Die height adjustment | mm |
| Throat depth | mm |
| Distance between uprights | mm |
| Table size | mm |
| Bottom size of slide | mm |
| Power of motor | kW |
| Overall dimension(LxWxH) | mm |
| Weight | kg |
EPMC-25T 25 80 90 180 60 710 290 560x360 220x200 2.2 1000x1380x2030 2260
