| Parameter | Unit |
| X axis travel | mm |
| Y axis travel | mm |
| Z axis travel | mm |
| Table size | mm |
| Working table load | kg |
| Spindle taper | |
| Spindle motor | kW |
| T-slot | no.mm |
| Tool magazine capacity | |
| Max tool diameter | mm |
| Tool length | mm |
| Tool weight | kg |
| Tool change time | sec |
| Controller | |
| Machine weight | kg |

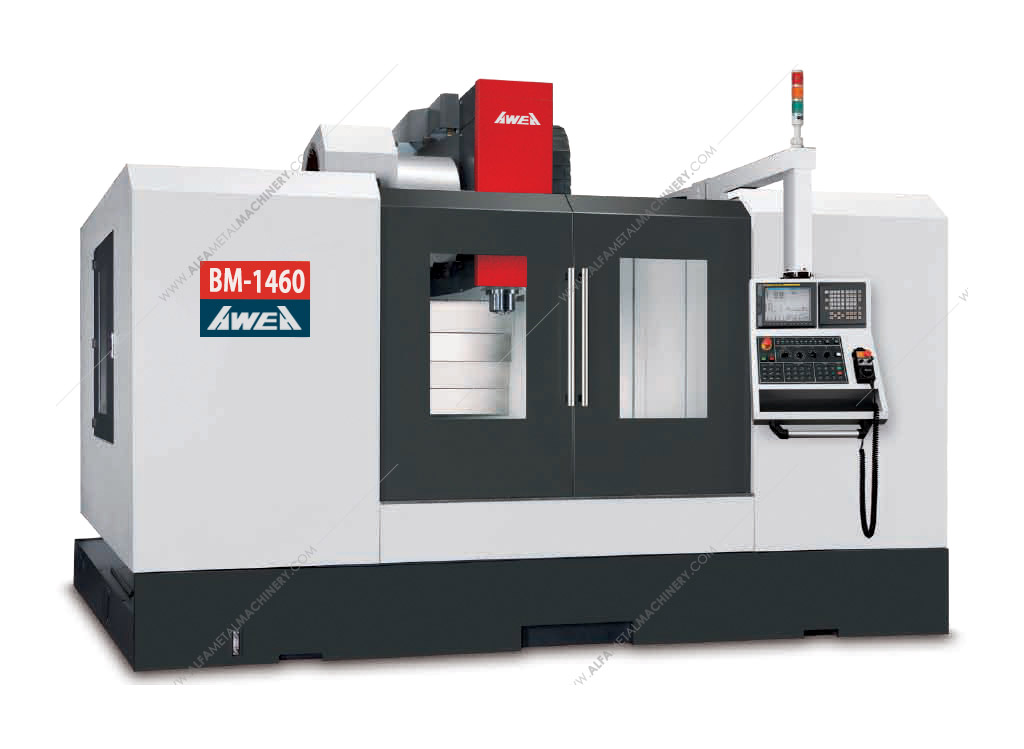

BM-1460 1400 600 600 1500x650 1400 BT 40 15 18x5 24/30 110/200 300 15 7 FANUC Oi-MD / M70 7500
NC Intelligence
AWEA’s self-developed intelligent i Console software enhancement system provides you with a user-friendly interface, real-time machine status information and dialogic functions. It not only effectively reduces complex working process but also increases intelligent machining abilities.
Multiple Functions Status Display
- Real time operation information
- Tool list
- Work piece measurement
- M code illustration
- PLC function
- Calculator
- CNC optimize parameter ( Opt. )
- Spindle thermal compensation ( Opt. )
Trouble Shooting
When the alarm appears, the program will display the breakdown cause and a troubleshooting procedure. Users can easily troubleshoot minor problems to save machine shutdown time.
Circular Work Piece Measurement
The circular work piece program can calculate the center coordinate of a work piece by measuring point A, B and C coordinates.
Rectangular work piece measurement
The rectangular work piece program can calculate the center coordinate and the slant angle of a work piece by measuring point A, B, C, D and E coordinates; the calculated center coordinate can be inputted into the work piece coordinate program ( G54~G59 ).
Manual Tool Length Measurement
After manually measuring the tool length, the controller will automatically calculate the tool tip position and input the data into the tool length offset table.
Adaptive feed control
Adaptive feed control is capable of real-time monitoring the spindle load to control the axial feed rate which effectively extends tool life, shortens rough cutting time, and detects abnormal cutting conditions.
CNC parameter optimization
From rough cutting to fine finishing, the operator can select various cutting modes based on the working condition, and then set the allowable error and work piece weight to obtain the optimum parameter.
HIGH PERFORMANCE SPINDLE SYSTEM
AWEA offers an extensive selection of machining center spindle & motor configurations to suite your needs. From belt drive, to direct drive, to gear head spindles, we have them all. We also offer higher horse power motors to match the strength of our machines for the ultimate cutting performance.
Spindles are assembled in AWEA own clean room to eliminate contamination problems caused by the surrounding environment.
Geared spindles are manufactured in-house.
After assembly, complete head stocks are isolated, broken-in, and tested on test platforms to ensure temperature, vibration, and noise are all within specifications.
HIGH PRECISION DIRECT-DRIVE SPINDLE
40 taper size 10,000 / 12,000 / 15,000 rpm high speed direct drive spindle is available. The direct drive spindle provide higher rigidity ( 16 kgf / μm axial / radial ), higher dynamic accuracy (1.2 μm ), lower noise ( Doors open : 72dB / Doors closed: 63 dB ), less vibration ( 2μm ), and lower thermal displacement ( Z-axis steady @ 32μm in 30 min).
