| Parameter | Unit |
| Table surface | mm |
| T-slot | no.mm |
| Distance between t-slot | mm |
| Working table load | kg |
| Longitudinal travel | mm |
| Cross travel | mm |
| Vertical travel | mm |
| Axes feed rate | mm/min |
| Spindle taper | |
| Spindle speed | rpm |
| Spindle motor | kW |
| Machine weight | kg |

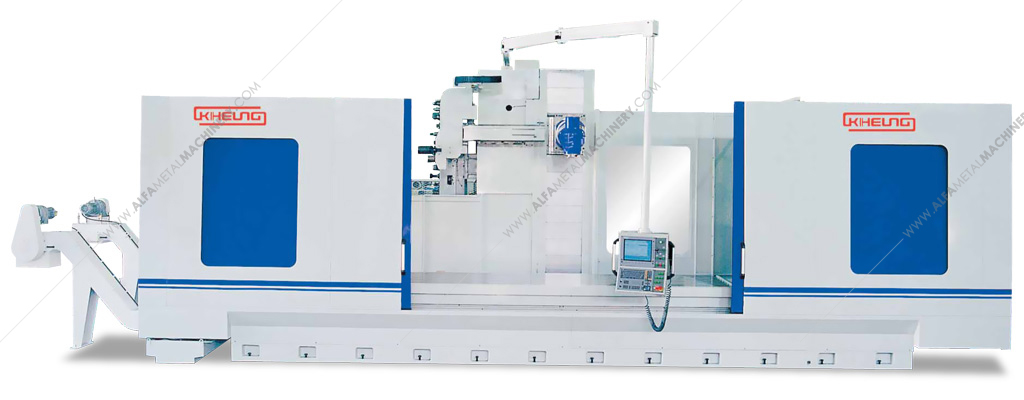

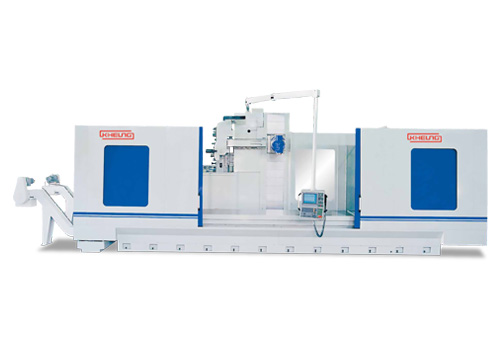

KNC U 1500 3200 / 4200 / 5200 x 1300 10x22 125 16000 3000 / 4000 / 5000 1500 1600 / 2000 8000 50 4000 28 / 42 37000
ZF GEARBOX
German ZF dual speed gearbox provide high torque and high turning speed allowing the machine to develop and extend its cutting ability to cover all applications.
TABLE BASE
Strong table base with wide slide way (300mm) and Ø100mm ball screw and big servo motor for X axis table movement.
COLUMN BASE
Strong column base with wide slide way (250mm) and Ø100mm ball screw and big motor.
LINEAR SCALE
Every axis is equipped with linear scale for high precision machining.
RAM
Strong flat ram with Turcite / B-plast and gib way for high milling performance and geometric accuracy during critical maximum Y cross travel.
SADDLE FOR VERTICAL MOVEMENT
Saddle with 3Tturcite guide way and 1gib way in combination with 2 INA roller shoes reduces stick-slip and reaches to the damping effect for the smooth vertical movement. Furthermore, it prevents saddle deviation during critical maximum Y cross travel.
UNIVERSAL MILLING HEAD (standard)
The main feature of the KNC series CNC bed type milling machine is the UNIVERSAL MILLING HEAD manual type, which is installed permanently on the machine. With this type of head these machines are capable of milling in many directions as vertical, horizontal, from one side or in a certain angle.
The head can be easily rotated in any desired position, manually, by the operator.
AUTOMATIC 2 POSITIONING HEAD (optional)
Automating 2 positioning (vertical and horizontal) and manual positioning through 360° between upper head and ram gear box.
AUTOMATIC 144 x 144 POSITIONING HEAD (optional)
Automating 144 x 144 positioning through curvic coupling both upper dead/ram gear box and lower head/upper head.
DIRECT HORIZONTAL SPINDLE HEAD (optional)
Direct horizontal spindle head with 6000 rpm and 2 step gear change.
