Powerful, precise and robust Vertical Machining Center
This vertical machining center is designed and built to meet the ever-increasing demands for high efficiency and high accuracy machining, such as molds and dies production, and other applications that require a powerful and reliable machine.
| Parameter | Unit |
| X axis travel | mm |
| Y axis travel | mm |
| Z axis travel | mm |
| Table size | mm |
| Working table load | kg |
| Distance from spindle nose to table top | mm |
| Distance from spindle center to column | mm |
| Spindle speed | rpm |
| Spindle taper | |
| Spindle motor | kW |
| T-slot | no.mm |
| Tool magazine capacity | |
| Max tool diameter | mm |
| Tool length | mm |
| Tool weight | kg |
| Tool change time | sec |
| Machine dimensions (LxWxH) | m |
| Machine weight | kg |
VMC-1100 1100 600 600 1100x600 600 150-750 650 40-6000 BT40 7,5 5-18 24 Ø150 300 8 3 2,8x2,22x2,8 6500
Coolant tank
The large capacity coolant tank is located on front side for an easy removal and a simple cleaning. The tank is isolated from the machine bed to prevent the heat transfer and the associated thermal distortion.
CNC Control
Standard machine is equipped with the latest Fanuc CNC command FANUC 0imate-MD to meet various requirement for batch production or high speed machining. The newly designed control panel can swing out for great convenience while setting up or operating the machine. When the control panel is not in use, it easily swings back into initial position.
Chip guard design
All axes are covered with stainless steel chip guard for better protection of the guide-ways. Slanted Y-axis chip guard is used in the front and rear side of saddle for easy chip flow.
The work table
The heavy duty large size work table is designed to allow heavy work pieces loading, and extra wide saddle gives much heavier loading capacity. A longer bed makes possible on extra long cross travel.
The guideways on X,Y axis
High performance linear guideways on X,Y-axis, provide extremely precise, anti-friction motion. Optimum spread and stance of the linear guides provide outstanding, uniform full support across the entire axis travel, ease of motion, straightness of movement and provides a stable cutting platform. The design insures that the machine movements never extend beyond the underlying support providing stability, rigidity and precision of motion – even with the heaviest of workpieces and engaged in the most challenging of cuts.
Automate lubrication system
The three axes linear ways and ball screws are lubricated by specially designed self lubrication devices. The operator is not required to add lubrication oil. This lubrication system not only prevents oil deterioration caused by coolant pollution, but also meets environmental protection requirement.
Direct coupled Fanuc servo-motors
To eliminate motor backlash all servo motors are direct coupled to the ball-screws while flexible couplings eliminate any noise due to minor misalignments encountered with other
Belt driven Spindle
The spindle is a true cartridge type unit supported by four precision class high speed bearings which are permanently greased and lubricated. The spindle is driven by a high torque Fanuc A.C. motor delivering high cutting power.

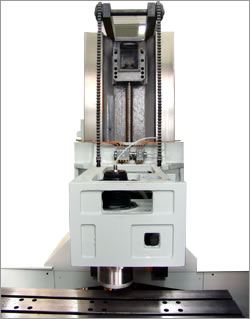

Z-axis guide-ways
Machine is designed with massive box-ways hardened and precision ground on Z-axis to ensures a high rigidity and stability during machining.
Laser Calibration
After assembly, all machines are measured and calibrated by the QC department’s laser calibration equipment. This verifies precision and machine compensation, resulting in consistent accuracy and repeatability.
Machine Construction
The machine is designed to provide outstanding stiffness, rigidity, thermal stability, speed, power and accuracy to tackle even the toughest production part materials and tolerances. Based upon a traditional C-frame approach and using heavy cast iron construction, the structure insures the quick, efficient transfer of the cutting forces through the various elements of the machine – from spindle into the column and ultimately the bed of the machine.
