SRB-NC SERIES
Interior tube diameter (mm):
200
MORE DETAILS
| Parameter | Unit |
| The largest inner diameter of the pipe | mm |
| Pipe working length | mm |
| Workpiece spindle rotation speed | r/min |
| Z-axis fast-moving speed | mm/min |
| Z-axis feed speed | mm/min |
| Power of motor | kW |
| Servo motor power | kW |
| Cooling pump flow | L/min |
| Pump output pressure | kgf/cm2 |
| Coolant tank system | L |
SRB200-20NC 200 500~2000 100-1200 5000 0.1~5000 AC37 3.0 600 2~15 2000+3000

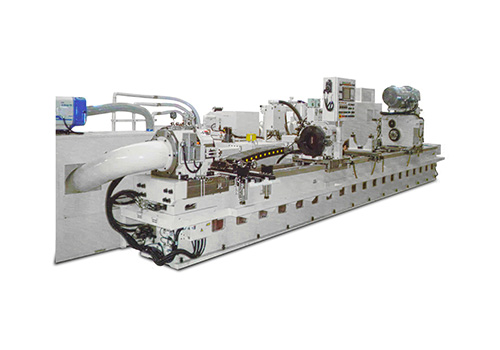

Interior tube diameter (mm):
250
MORE DETAILS
| Parameter | Unit |
| The largest inner diameter of the pipe | mm |
| Pipe working length | mm |
| Workpiece spindle rotation speed | r/min |
| Z-axis fast-moving speed | mm/min |
| Z-axis feed speed | mm/min |
| Power of motor | kW |
| Servo motor power | kW |
| Cooling pump flow | L/min |
| Pump output pressure | kgf/cm2 |
| Coolant tank system | L |
SRB250-25NC 250 500~2500 100-1200 5000 0.1~5000 AC45 3.0 780 2~15 3000+4000

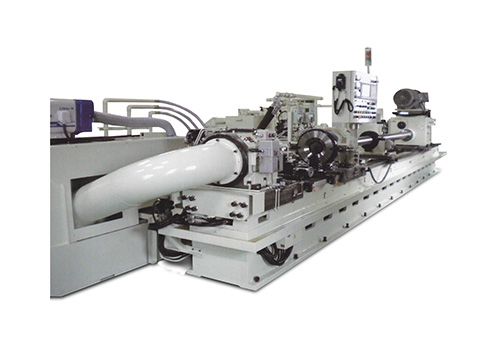

Interior tube diameter (mm):
300
MORE DETAILS
| Parameter | Unit |
| The largest inner diameter of the pipe | mm |
| Pipe working length | mm |
| Workpiece spindle rotation speed | r/min |
| Z-axis fast-moving speed | mm/min |
| Z-axis feed speed | mm/min |
| Power of motor | kW |
| Servo motor power | kW |
| Cooling pump flow | L/min |
| Pump output pressure | kgf/cm2 |
| Coolant tank system | L |
SRB300-30NC | SRB1200-30NC 300 500/1000-3000/1200 100-1000 | 50-1000 5000 0.1~5000 AC55/AC90 4.5/7.5 | 9 900 2~15 3000+4000 | 5000+700

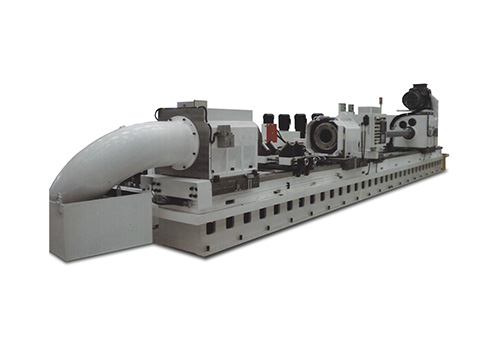

Interior tube diameter (mm):
420
MORE DETAILS
| Parameter | Unit |
| The largest inner diameter of the pipe | mm |
| Pipe working length | mm |
| Workpiece spindle rotation speed | r/min |
| Z-axis fast-moving speed | mm/min |
| Z-axis feed speed | mm/min |
| Power of motor | kW |
| Servo motor power | kW |
| Cooling pump flow | L/min |
| Pump output pressure | kgf/cm2 |
| Coolant tank system | L |
SRB300-42NC | SRB500-42NC 420 500-3000/5000 50-800 | 10-800 5000 0.1~5000 AC75/AC110 7.5/9 1200 2~15 3500+6500

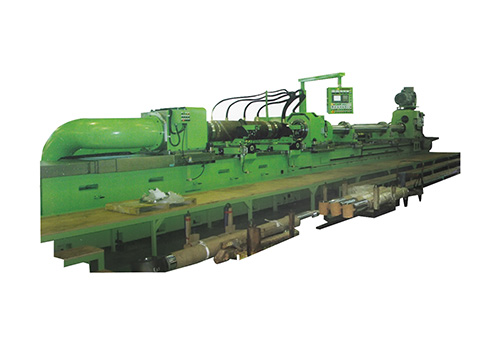

Interior tube diameter (mm):
500
MORE DETAILS
| Parameter | Unit |
| The largest inner diameter of the pipe | mm |
| Pipe working length | mm |
| Workpiece spindle rotation speed | r/min |
| Z-axis fast-moving speed | mm/min |
| Z-axis feed speed | mm/min |
| Power of motor | kW |
| Servo motor power | kW |
| Cooling pump flow | L/min |
| Pump output pressure | kgf/cm2 |
| Coolant tank system | L |
SRB500-50NC 500 500~5000 10-500 5000 0.1~5000 AC90/AC130 7.5/9 1200 2~15 3500+6500
