High Speed Wire Cut EDM machine

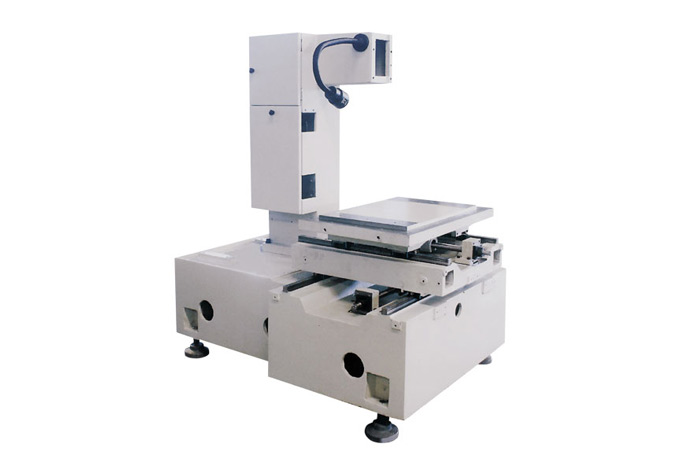

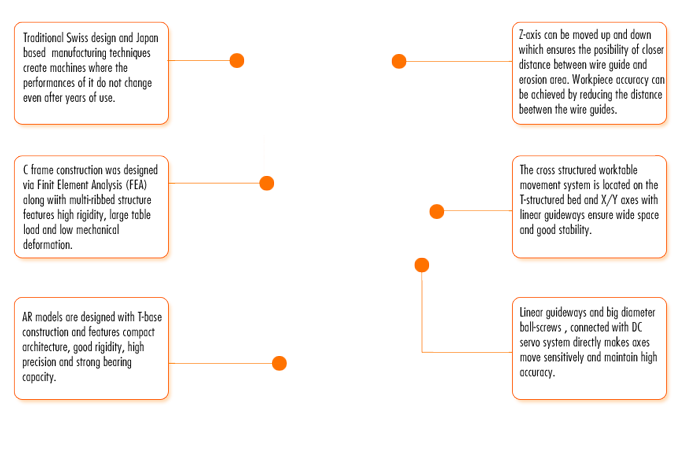

The C-type structure of the machine makes the mechanical body rigid and compact.
The cross structured worktable movement system is located on T-structure bed, and X/Y axes with linear guideways ensure wide space, good stability, and strong bearing capacity.

details_arrow
novick
NOVICUT M II Series

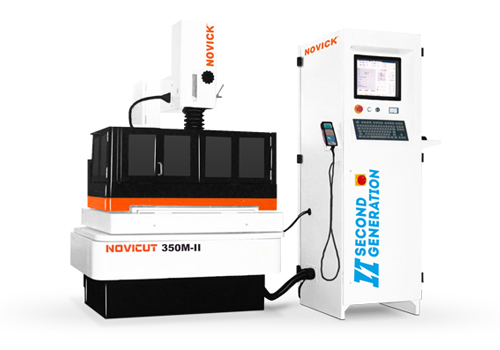

novick NOVICUT 350M High Speed Wire Cut EDM machine

Worktable length (mm)

620

820

1100

1300

ParameterUnit
X axis travelmm
Y axis travelmm
Z axis travelmm
U axis travelmm
V axis travelmm
Workpiece sizemm
Workpiece weightkg
Size of work tankmm
Max cutting taper°/mm
Workpice thicknessmm
Standard configuration
Power inputkW
Max machining currentA
Displayinch
Programmable axes
Machine dimensions (LxWxH)m
Machine weightkg
  • NOVICUT 350M
    350
    300
    150
    36
    36
    620x400x200
    300
    960x600
    ±6/50
    200
    380V±10% / 50(60)
    2
    10
    15
    XYUV
    2x1.4x1.7
    1800


CNC CONTROL SYSTEM

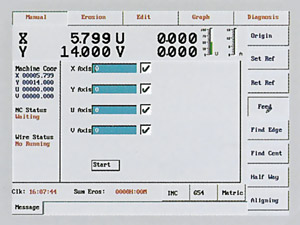

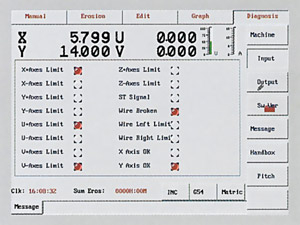

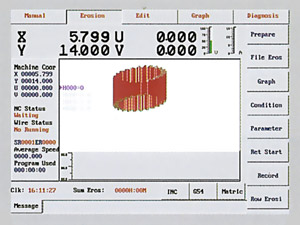

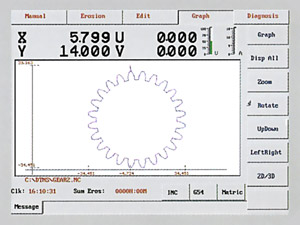

5 pages of screens, consisted of Manual, Erosion, Edit, Graph, Diagnostic, offer very friendly man-machine interface
Real-timely multi-tasking control software makes it possible to do preparations for next jobs during erosion.
The friendly man-machine interface can meet the needs both for beginners and experienced operators.

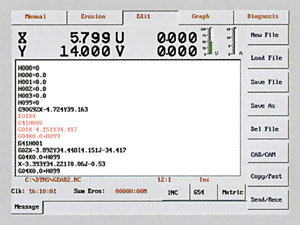

NC programming takes the standard ISO G/M code .

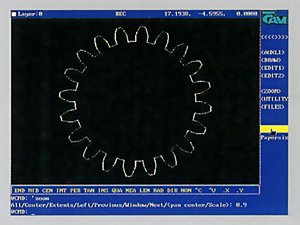

Integrated CAD/CAM programming system allows operators to design NC programs automatically by key-in drawings in machine or receiving drawing files in DXF format from serial communication interfaces.
With powerful CNC function, edge Find,Center Find, Automatically.
With USB interface and LAN communication interface, the machine can exchange datum with programming computers or control center conveniently.
Waterproof keyboard with stainless steel keys
An ergonomic remote control panel is provided for fast positioning by the operator
High precision linear guideways
Wire nozzle system
The table surface is manufactured from stainless steel for extending service life
Wire tension device and drum wire feeding system.
