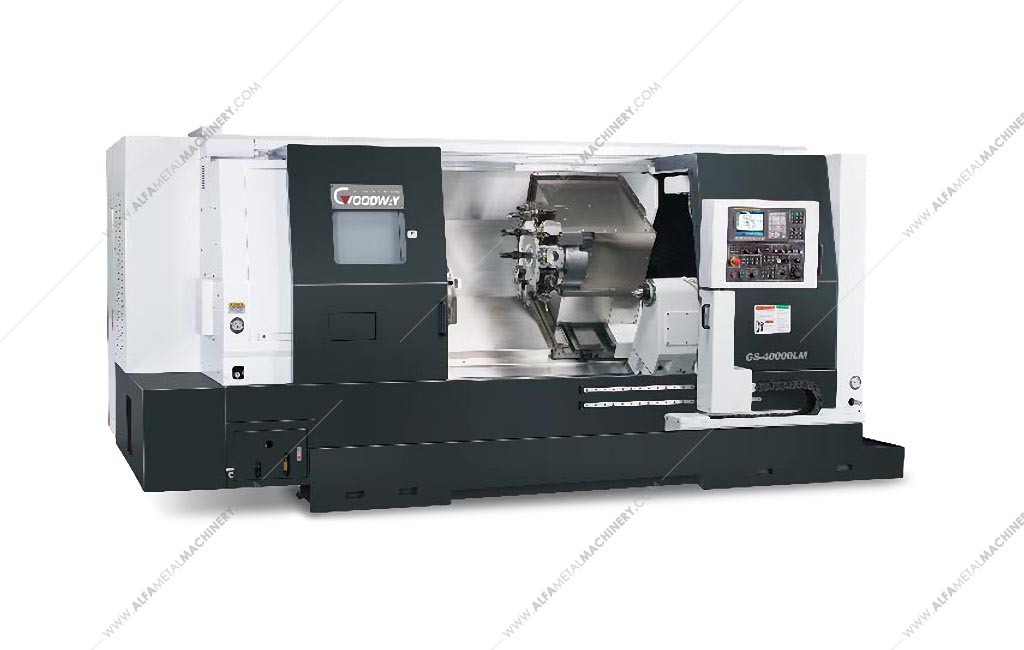

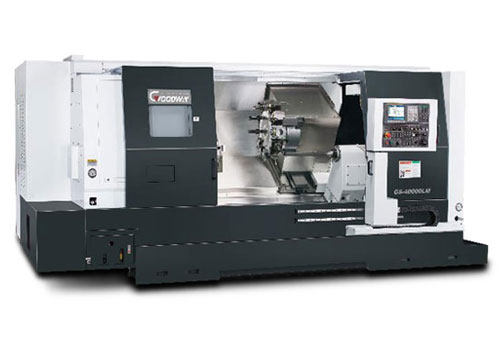

Maximum Performance CNC Turning Centers
These powerful maximum performance machines will easily accomplish the demanding turning applications of today and tomorrow. 2 bed lengths ( utilizing the same advanced design ) and 3 spindle sizes offer a total of 6 basic model configurations to suit your application. Furthermore, with available live tooling, C-axis, Y-axis, and sub-spindle capabilities, milling, drilling, and front / back-end turning applications may be completed in one single machine.
| Parameter | Unit |
| X axis travel | mm |
| Z axis travel | mm |
| Z2 axis travel | mm |
| Max turning diameter | mm |
| Max turning length | mm |
| Max swing diameter | mm |
| Swing over saddle | mm |
| Hole through draw tube | mm |
| Hole through spindle | mm |
| Spindle bearing diameter | mm |
| Spindle nose | |
| Spindle torque | N-m |
| Spindle speed range | rpm |
| Spindle motor type | |
| Main power | kW |
| Turret stations | |
| OD tool shank size | mm |
| ID tool shank size | mm |
| Positioning accuracy | mm |
| Repeatability | mm |
| Controller | |
| Machine dimensions (LxWxH) | m |
| Machine weight | kg |
GS-4000 GS-4033 GS-4300 350 850 800 620 819 770 940 118 130 180/160 A2-11 739/911 20-2000 α30/6000i 30/37 12 32 60 +/- 0.005 +/- 0.003 FANUC Oi-TD 3.7x2.2x2.1 8000 350 850 800 620 819 770 940 90.5 104 140/120 A2-8 613/730 30-3000 α30/6000i 18.5 12 32 60 +/- 0.005 +/- 0.003 FANUC Oi-TD 3.7x2.2x2.1 8000 350 850 800 620 819 770 940 165.5 190 240/220 A2-15 1197/1476 12-1200 α30/6000i 30 12 32 60 +/- 0.005 +/- 0.003 FANUC Oi-TD 3.7x2.2x2.1 8000
