Automatic cnc drilling line
The automatic cnc drilling line “mod. PDL-400 with 3 drilling tools” is studied for the small and medium steel construction companies that need flexibility in their production of small profiles: beams, steel angles, Unp, Rectangular/square tubes, steel flats.
28
| Parameter | Unit |
| Max drilling diameter | mm |
| Power of motor | kW |
| Max. profile length standard | mm |
| Precision of drilling | mm |
| Tickness of the steel bars | mm |
| Size width IPE-HEA-HEB | mm |
| Maximum weight of workpiece | kg |
PDL-400 28 20 12000 0.5 6/8-28 80-400 125

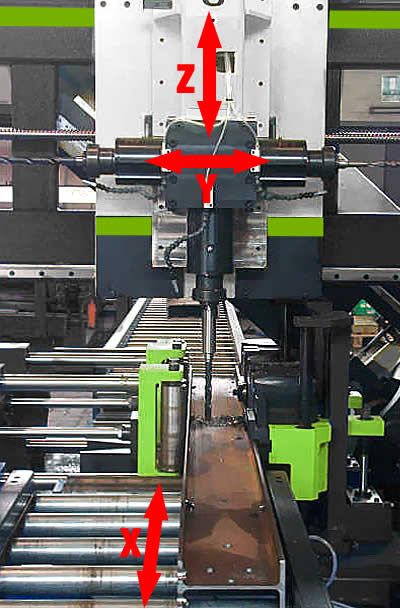

Drilling unit
The spindle is a multi drilling unit with 3 drilling tools (1 vertical and 2 horizontal – left and right), and is capable to drill automatically different diameter for each side of the profile without any reposition of the profile or tool changing.
Designed with high precision linear guideways
Driven by AC servo motors with high precision ballscrews

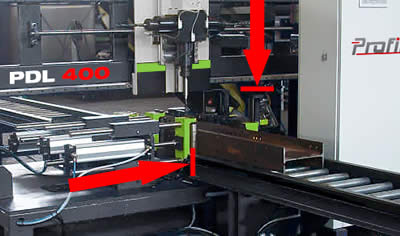

Clamping and feeding system
The base is a welded high duty steel structure which includes feeding rollers, lock system, measuring unit and drilling bridge.
The automatic lock system have 2 components, a vertical lock device and one horizontal which are CNC controlled and act in the same time giving a very high rigidity for the profile to be drilling.

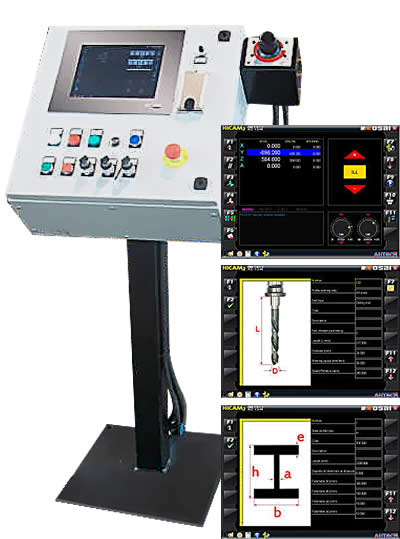

CNC control
Friendly and simply to use CNC screens
Windows base interface
Touch screen monitor
Easy programming and storage function
USB interface with possibility to import CAM files from a memory stick

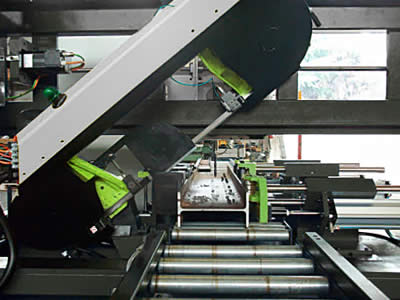

Band sawing unit
Optional, on request a band sawing unit could be placed on the same line, for cutting straight or angle (-45° +45°) the profiles to be processed.
The cycle cut will be completely automatic and the same CNC will manage the angle and the cut cycle.
