Fully electrical CNC Press Brake
- driven by electro-servo system with small floor space design
- maximum energy conservation, lower noise and more accurate positioning
- upperbeam is driven by ball screw, linear guide feedback the positioning signal of upperbeam to realize full loop control
- backgauge is driven by digital AC servo motor, moved by precision ball screw, quided by linear guide
| Parameter | Unit |
| Nominal Presure | KN |
| Length of work table | mm |
| Distance between uprights | mm |
| Throat depth | mm |
| Ram stroke | mm |
| Ram speed | mm/s |
| Power of motor | kW |
| Max open height | mm |
| Overall dimension(LxWxH) | mm |
| Weight | kg |
PBE-30/1250 300 1250 1036 425 120 100 | 10 | 100 4x2 325 1540x1240x2270 3000
The graphical programming, bend sequence computation and 2D simulation provide a user-friendly and fast programmable CNC for press brakes ever built.
Programming the Delem DA-56 is simply drawing the profile of your product on the screen. Simulation of the bend sequence is done with the user-friendly bend determination tool. With one simple keystroke, the CNC program is calculated and stored.

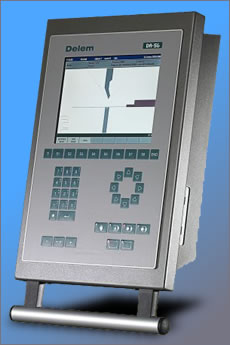

Delem DA-56
- 2D graphical programming
- Bend sequence determination
- Crowning control
- Servo, frequency inverter and AC control
- Color display 10" TFT
- 2D Graphical CNC system
- PLC functions
- Operator warning system
Specifications:
Two servo motors control the movement of the upper beam. They guarantee the precision positioning of the punch into the die, with an unrivalled constancy, hence ensuring an excellent bending result. The PBE series is particularly adapted to the processing of small and complex parts, it allows the operator precise and adjustable control of the bending beam. This faculty provides a very high level of quality and productivity.
A CNC programmable 4 axes (X-gauging of bend length, R-gauging the height of the stops, Z1, Z2-gauging the distance between stops) high precision back-gauge is standard on all PBE series press brakes machines. High precision linear guide-ways are installed for maximize bending accuracy.
Accurate tools and good clamping system are fundaments for correct angles. PBE series is designed to use European precision ground tooling system as standard. This series is designed with fast wedge clamping system for quick fastening changing tool. Tool can be installed in any position of the beam regardless of tool width.
Standard Accessories
DELEM DA56, Netherlands CNC control 2D graph programming and display
Backgauge has two CNC axes (X, R) which is being moved with ball screw-shaft, guided by linear guide, driven by AC servo motor;
Equipped with two finger-stops which can manually move leftward and rightward along the linear guide
Mechanical fast clamping device
Die installation is 2-V+T slot quick change type (including one set of European standard tooling)
Optical scale is Heidenhain, Germany
Two fixed front sheet support
Two sides door-type safety guards and rear safety guard
Optional Accessories
Delem DA65W, Netherlands 2D graph programming and display
Double sides clamping of the punch
Extra finger-stops moving along linear guide
Air condition for the electric cabinet
Normal safety guard system
Fiessler AKAS-LCIIF (inside PLC)
Economical LazerSafe laser guarding LZS003
CE standard safety guards
Hydraulic system has middle-position monitoring function +Fiessler AKAS-IIF (inside PLC, laser beam automatic aligning.) + other CE requirement
Hydraulic system has middle-position monitoring function +Fiessler AKAS-LCIIF (inside PLC, laser beam aligning by manual)
