Single Tube End Chamfering

The SOCO EF Chamfering series extends up to Ø115mm in capacity. These semi-automatic machine models offer different functions such as universal clamping jaws for various tube sizes (EF-AC/115-U Type).
- precise angular Chamfers for Fitting and Assembly
- Centering and Outside Chamfer for Solid Bars

details_arrow
soco
EF Series

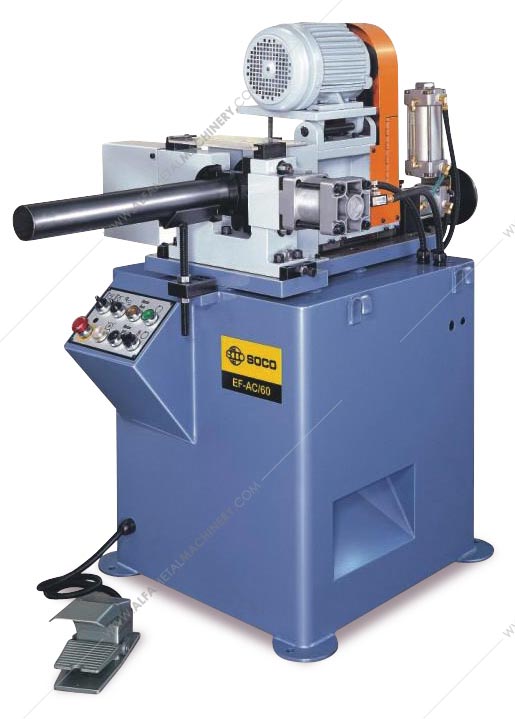

soco EF-AC/60 Single Tube End Chamfering

Tube working Capacit (mm)

60

80

115

ParameterUnit
Working capacity(tube)mm
Working capacity(bar)mm
Tool setmm
Pressured airkg/cm²
Machine dimensions (LxWxH)m
Machine weightkg
  • EF-AC/60
    Ø15 - Ø60
    Ø9 - Ø25
    Ø15 - Ø60
    6-9
    0.6x1x1.1
    210
