| Parameter | Unit |
| Laser power | W |
| Process range (length x width) | mm |
| Cutting thickness | mm |
| Laser wavelength | nm |
| Pulse frequency | HZ |
| Maximum cutting speed | m/min |
| Electrical source | V/HZ/A |
| X, Y, Z axis geometric positioning accuracy | mm/mm |
| X, Y, Z axis re-orientation accuracy | mm |

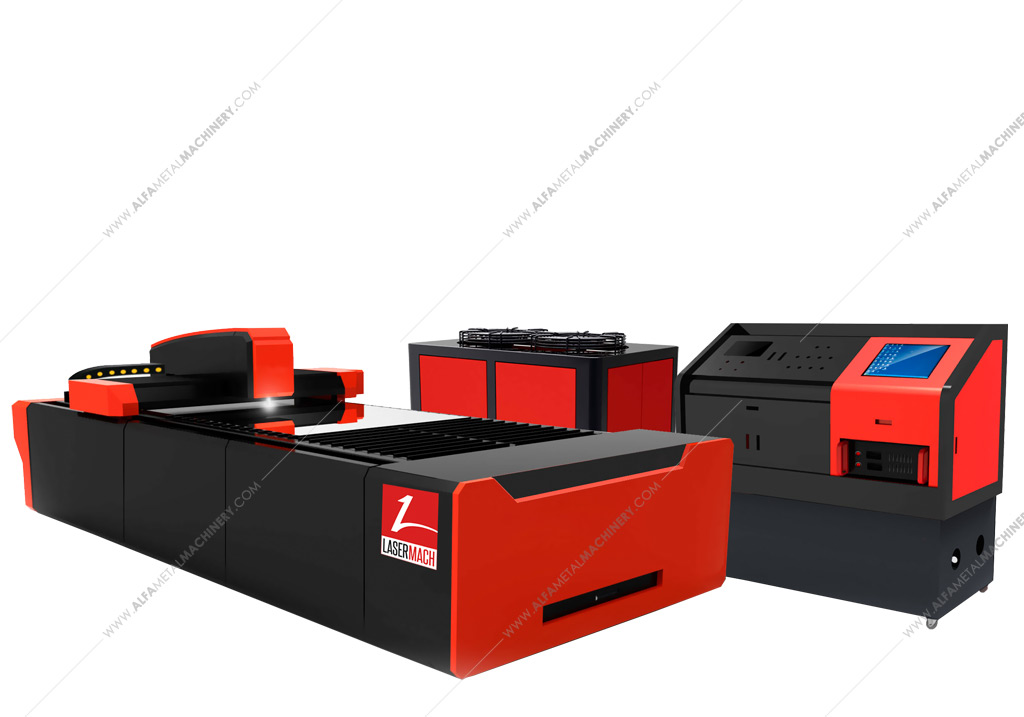

L2-2513Y L2-3015Y L2-4115Y 620 | 750 2500x1300 0.1-8 1064 1-300 0.035 380/50/100 ≤ ± 0.08/1000 ≤ ± 0.04 620 | 750 3000x1500 0.2-8 1064 1-300 0.035 380/50/100 ≤ ± 0.08/1000 ≤ ± 0.04 620 | 750 4100x1500 0.2-8 1064 1-300 0.035 380/50/100 ≤ ± 0.08/1000 ≤ ± 0.04
Germany imported YAG laser generator
The generator consist of:
- YAG crystal rod: lifetime is 15,000 hours (nearly 3years)
- Golden chamber (high qulity Golden Chamber wil be never broken)
- Xenon lamp: lifetime of Xeon Lamp is about 500 hours
This dual xenon-pumped laser is cost effective and easy to maintenance; operators can replace the consumables and maintain the product independently after two days training.
Optical System
When the laser beam come out ,it will be transmitted by reflecting lens, amplifying lens, focusing lens, then it reflects a high intensity laser radiation to the metal surface, finales a constant external light path accomplished.
The imported beam expander lens can shorten the focal depth of the laser ,thus the focused energy is further concentrated to effectively improve the processing speed.
