Drilling / Milling Machines

- rectangular table guideways with high stability
- hardened and ground table surface
- headstock swivels +/-45º

details_arrow
profimach
EASY Series

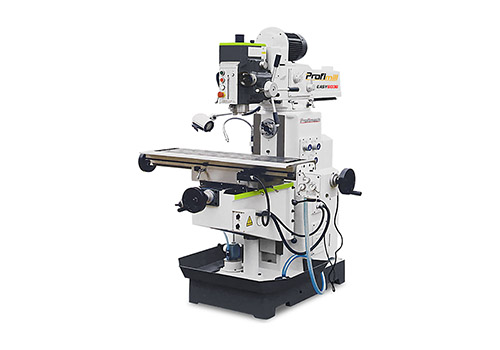

profimach EASY PMD-6036 Drilling / Milling Machines

X-axis Travel (mm)

600

ParameterUnit
Table sizemm
Table travelmm
Spindle travelmm
Spindle speed rangerpm
Spindle taper
Spindle motorkW
Max drilling diametermm
Machine dimensions (LxWxH)m
Machine weightkg
  • EASY PMD-6030H EASY PMD-6036
    1120x260
    600x300
    120
    67-2010
    ISO 40
    2.2
    ∅50
    1.5x1.2x2.1
    1350
    1220x360
    600x360
    -
    94-2256
    ISO 40
    1.5/2.4
    50
    1.7x1.7x2.3
    1750


DIGITAL READOUT module

- 200 Points Auxiliary Zero Position Function
- Mid-split Function
- “mm/inch” Conversion Display
- Radius/Diameter Switch Display
- Segmented Error Compensation
- Linear Error Compensation
- Power Interruption Memory
- Sleep Switch
- Mathematics calculation
- RS-232-C interface (option)

DRO MODULE INSTALLED ON A profimill

SPECIFICATIONS

The PROFIMACH DRO SDS6-3V is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function.

MACHINING FUNCTIONS

- PCD circumferential division (Applicable to milling machine and spark tester)
- Involutes chamber machining function (Applicable to milling machine)
- Bevel machining/Angular Surface Processing (Applicable to milling machine)
- N3 function (Applicable to milling machine)
- Diagonal boring (Applicable to milling machine)
- R-arc function (Applicable to milling machine)
- Taper measuring function (Applicable to lathe)
- 200-tool library (Applicable to lathe)
- Anti-dithering function (Applicable to grinding machine)


automatic spindle speed
