Universal Swivel Head Milling Machines

This series of milling machines, with a swivel head, used for heavy cutting, are designed according to the highest standards in the machine tool industry. The combination between the high quality and the special features ranks this series among the best machines on the international market.

details_arrow
profimach
FLEXI Series
profimach FLEXI PMU-7527 Universal Swivel Head Milling Machines

X-axis Travel (mm)

750

ParameterUnit
Table sizemm
Table travelmm
Ram travelmm
Working table loadkg
Longitudinal travelmm
Cross travelmm
Vertical travelmm
Spindle speed rangerpm
Spindle taper
Spindle motorkW
Vertical spindle axis to column surfacemm
Vertical spindle nose to table surfacemm
Machine dimensions (LxWxH)m
Machine weightkg
  • FLEXI PMU-7527
    1270x260
    750x270
    440
    250
    750/730 (manual/auto)
    270
    380
    45-1660/11 step
    ISO40
    2.2
    60-500
    100-480
    1.6x1.5x1.7
    1680


DIGITAL READOUT module

- 200 Points Auxiliary Zero Position Function
- Mid-split Function
- “mm/inch” Conversion Display
- Radius/Diameter Switch Display
- Segmented Error Compensation
- Linear Error Compensation
- Power Interruption Memory
- Sleep Switch
- Mathematics calculation
- RS-232-C interface (option)

DRO MODULE INSTALLED ON A profimill

SPECIFICATIONS

The PROFIMACH DRO SDS6-3V is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function.

MACHINING FUNCTIONS

- PCD circumferential division (Applicable to milling machine and spark tester)
- Involutes chamber machining function (Applicable to milling machine)
- Bevel machining/Angular Surface Processing (Applicable to milling machine)
- N3 function (Applicable to milling machine)
- Diagonal boring (Applicable to milling machine)
- R-arc function (Applicable to milling machine)
- Taper measuring function (Applicable to lathe)
- 200-tool library (Applicable to lathe)
- Anti-dithering function (Applicable to grinding machine)

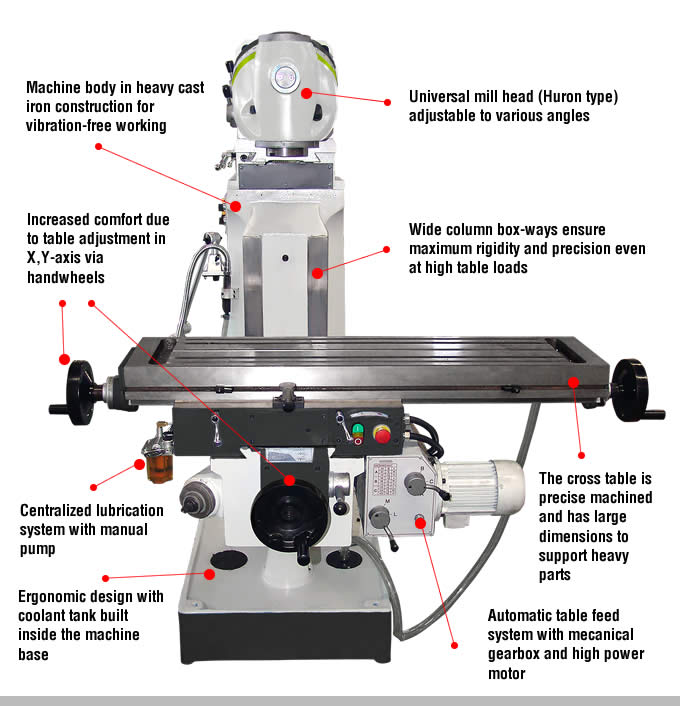

profimach flexi series universal swivel head milling machine

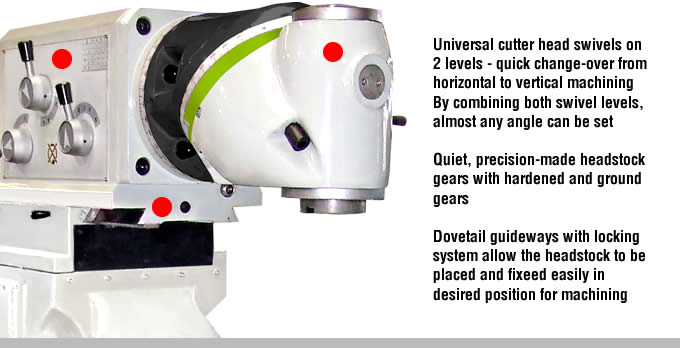

profimach flexi series universal swivel head milling machine universal cutter

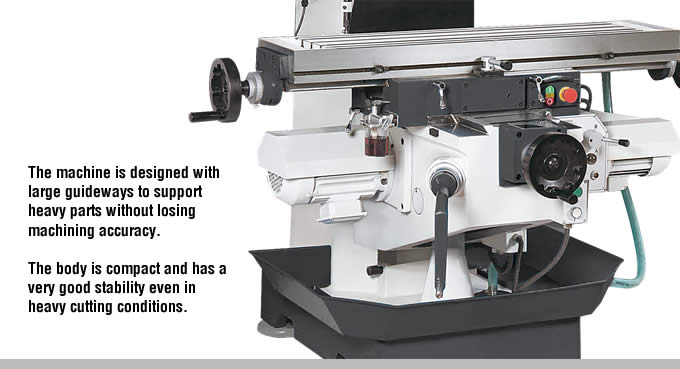

profimach flexi series universal swivel head milling machine body structure

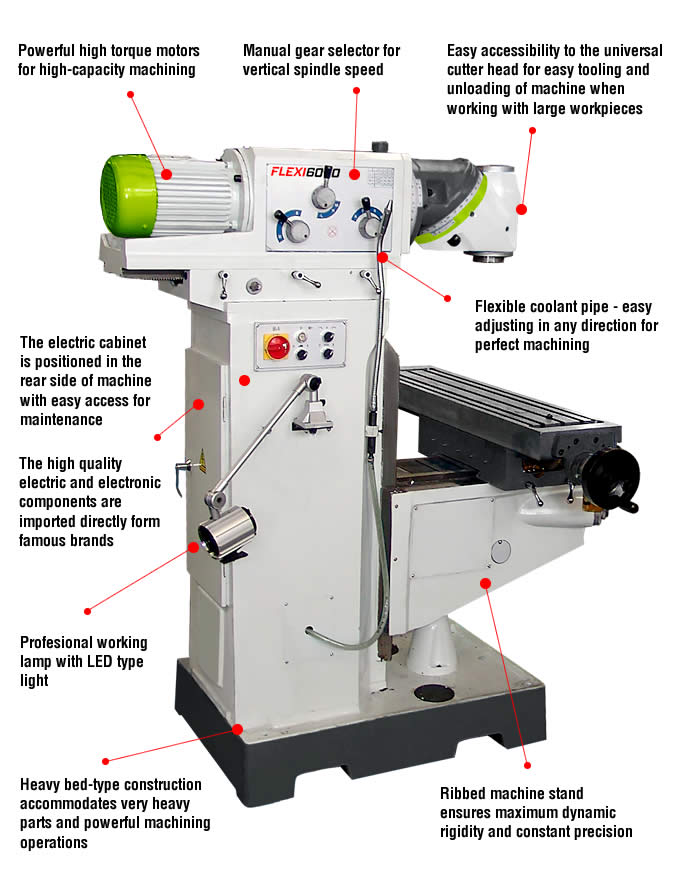

profimach flexi series universal swivel head milling machine heavy bed type construction

universal swivel head
