profimach RAPTOR PMP-6729 Multipurpose Milling Machines

X-axis Travel (mm)

670

760

ParameterUnit
Table sizemm
Table travelmm
Spindle speed rangerpm
Spindle motorkW
Quill travelmm
Machine dimensions (LxWxH)m
Machine weightkg
  • RAPTOR PMP-6729
    1060x230
    670x290x370
    80-4500
    2.2
    127
    2x1.6x2
    1100


DIGITAL READOUT module

- 200 Points Auxiliary Zero Position Function
- Mid-split Function
- “mm/inch” Conversion Display
- Radius/Diameter Switch Display
- Segmented Error Compensation
- Linear Error Compensation
- Power Interruption Memory
- Sleep Switch
- Mathematics calculation
- RS-232-C interface (option)

DRO MODULE INSTALLED ON A profimill

SPECIFICATIONS

The PROFIMACH DRO SDS6-3V is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function.

MACHINING FUNCTIONS

- PCD circumferential division (Applicable to milling machine and spark tester)
- Involutes chamber machining function (Applicable to milling machine)
- Bevel machining/Angular Surface Processing (Applicable to milling machine)
- N3 function (Applicable to milling machine)
- Diagonal boring (Applicable to milling machine)
- R-arc function (Applicable to milling machine)
- Taper measuring function (Applicable to lathe)
- 200-tool library (Applicable to lathe)
- Anti-dithering function (Applicable to grinding machine)


structure raptor series multipurpose milling machine
alfa metal machinery raptor series
alfa metal machinery raptor large corss table
alfa metal machinery
alfa metal machinery manual centralized lubrification
alfa metal machinery digital readout module profimach dro sds6-3v

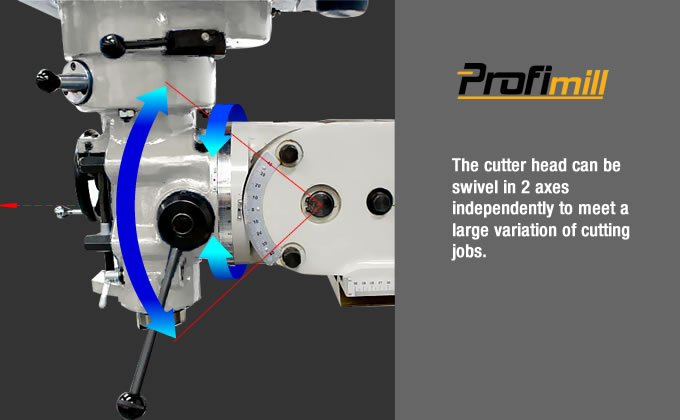

the cutter head
