ToolRoom Milling Machines

It used for metal cutting manufacture in different mechanical industries. Can be used for drilling, milling, and boring. It is suitable for half-finished and precision-machined manufactured of machine parts, which have complicated shapes.

details_arrow
profimach
TOOLROOM Series

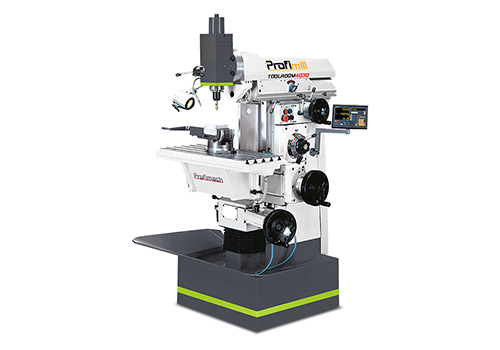

profimach TOOLROOM PMT-4030 ToolRoom Milling Machines

X-axis Travel (mm)

400

500

ParameterUnit
Table sizemm
Working table loadkg
Longitudinal travelmm
Cross travelmm
Vertical travelmm
Spindle speed rangerpm
Spindle taper
Spindle motorkW
Machine dimensions (LxWxH)m
Machine weightkg
  • TOOLROOM PMT-4020 TOOLROOM PMT-4030
    750x320
    300
    405
    200
    390
    40-1600
    ISO40
    2.2
    1.3x1.4x1.8
    1100
    750x320
    300
    405
    305
    400
    40-2000
    ISO40
    2.2
    1.2x1.2x1.8
    1300


DIGITAL READOUT module

- 200 Points Auxiliary Zero Position Function
- Mid-split Function
- “mm/inch” Conversion Display
- Radius/Diameter Switch Display
- Segmented Error Compensation
- Linear Error Compensation
- Power Interruption Memory
- Sleep Switch
- Mathematics calculation
- RS-232-C interface (option)

DRO MODULE INSTALLED ON A profimill

SPECIFICATIONS

The PROFIMACH DRO SDS6-3V is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function.

MACHINING FUNCTIONS

- PCD circumferential division (Applicable to milling machine and spark tester)
- Involutes chamber machining function (Applicable to milling machine)
- Bevel machining/Angular Surface Processing (Applicable to milling machine)
- N3 function (Applicable to milling machine)
- Diagonal boring (Applicable to milling machine)
- R-arc function (Applicable to milling machine)
- Taper measuring function (Applicable to lathe)
- 200-tool library (Applicable to lathe)
- Anti-dithering function (Applicable to grinding machine)

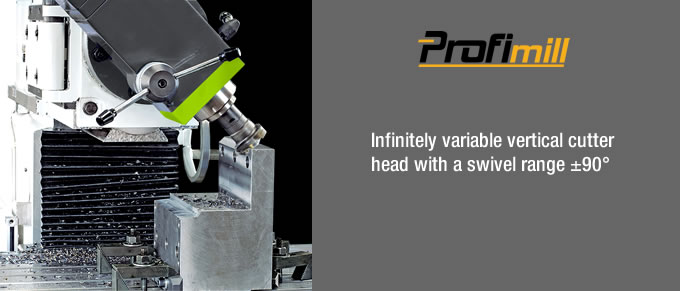

vertical cutter head with a swivel angle 90 degree
