High RIGID High Precision Toolroom Lathes

This lathe series was designed for better cutting single workpieces or large batches. The machine rigid construction (bed, spindle, headstock, tailstock, guideways, etc.) and the mobile components, the large speed range for the spindle, as well as the high feed rates allow a rational selection of the cutting parameters and various operations for normal or heavy duty cutting, while maintaining a high level of precision

details_arrow
profimach
SOLID Series

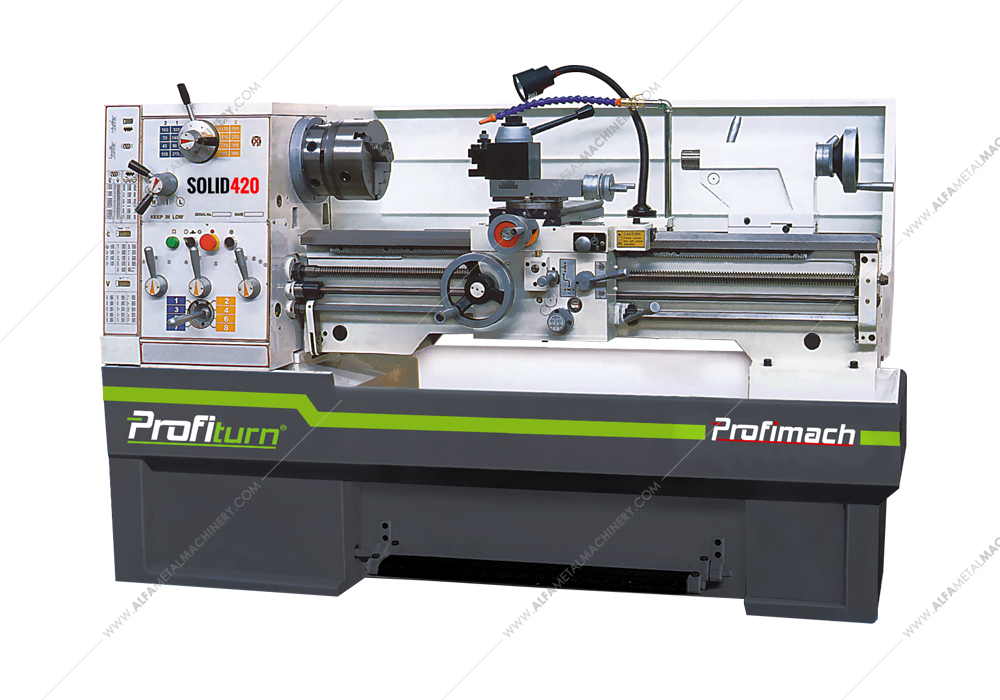

profimach SOLID PT-025-420 High RIGID High Precision Toolroom Lathes

Swing over bed (mm)

420

460

560

660

800

ParameterUnit
Width of bedmm
Swing over bedmm
Max. swing diameter over carriagemm
Hole through spindlemm
Spindle nose
Distance between centersmm
Cross slide travelmm
Top slide travelmm
Tailstock - dia. of center quillmm
Tailstock - max. travel of center quillmm
Machine dimensions (LxWxH)m
Machine weightkg
  • SOLID PT-025-420
    255
    420
    220
    58
    D1-6
    1000 1500
    285
    128
    60
    128
    2.2/2.7/4.3x1x1.3
    1670/1920/2100


INCREASE THE PRODUCTIVITY,

WITH CSS+CVS+DRO MODULE INSTALLED ON A PROFITURN LATHE

The latest CSS+CVS Digital Readout System gives you productivity gains up to 25% on PROFITURN lathes over conventional engine lathes.

Only PROFITURN Toolroom Lathes gives you features that will let you achieve cutting performance similar to a CNC lathe. CSS + CSV automatically controls spindle speed during machining, allowing high performance tooling and very high cutting speeds during finishing operations.

  • Extended tool life do to optimum cutting speeds
  • 25% productivity increase
  • Gain full use of high performance cutting tools
  • Better surface finish
CSS-CVS-DRO MODULE INSTALLED ON A PROFITURN LATHE


This is a general presentation for the entire Profiturn SOLID series . Models may have some minor differences.

alfa metal machinery conventional lathe solid series profimach structure

The bed, made of high quality Meehanite cast iron, provides toughness and vibration strength. Its design authorizes chips fast removal. It is equipped with a bridge of which dismounting allows increase machining diameter.

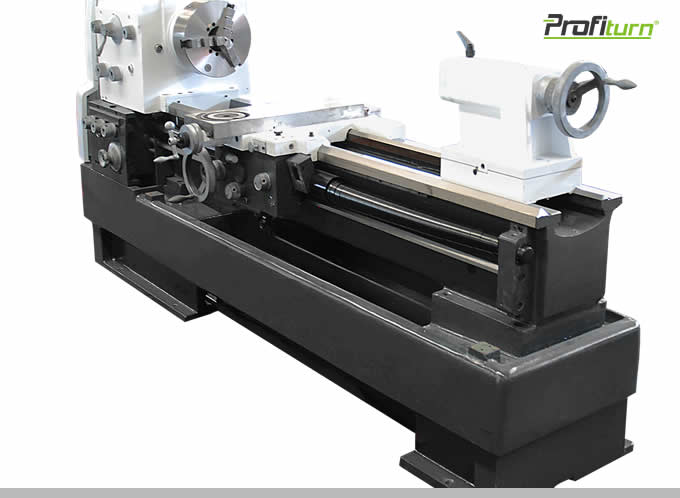

alfa metal machinery conventional lathe solid series profimach structure bed

The headstock is made of high quality cast iron, heavily ribbed, is designed to absorb vibration even in hardest machining cycles. The rigid, large main spindle runs in high-precision adjustable taper roller bearings. The gearbox offers a wide range of cutting speed plenty of torque allowing machining of various materials. It is designed to have a smooth running with low vibrations and with a closed shape.

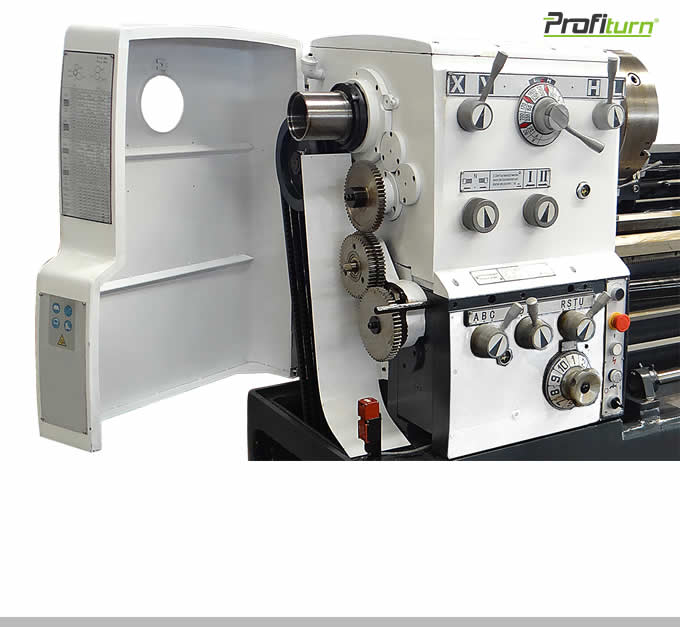

alfa metal machinery conventional lathe solid series profimach The headstock

The slides are of an extremely rigid construction and the backlashes are adjusted by means of tapered keys. The slides are endowed with rubber wipers avoiding the guideways gripping. The carriage, fixed on the longitudinal slide, provides automatic feeds, rapid feeds and working feeds, as well as, manual feeds in two directions(longitudinal and cross).

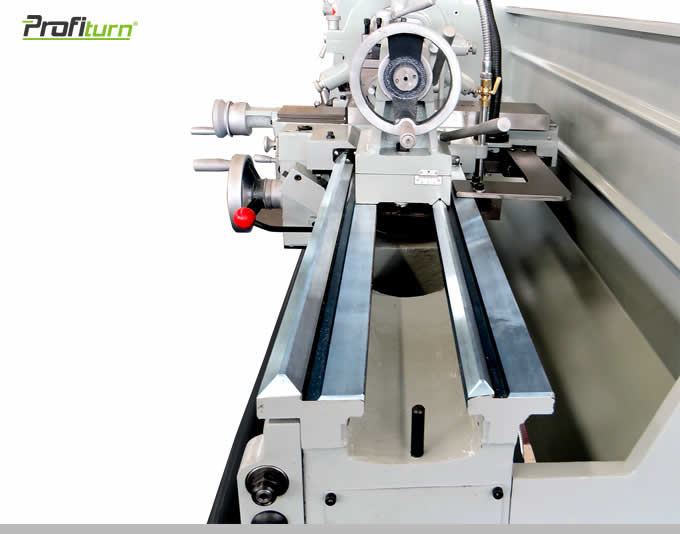

alfa metal machinery conventional lathe solid series profimach

The cross slide runs in a dove-tail guideway. Adjustment via pressure plate. Feed automatic or with handwheel. Both the longitudinal and cross slides can be clamped. The upper slide with dove-tail guideway can be pivoted 360°. A feed lever with safety lock prevents longitudinal and axial feed switch-through.

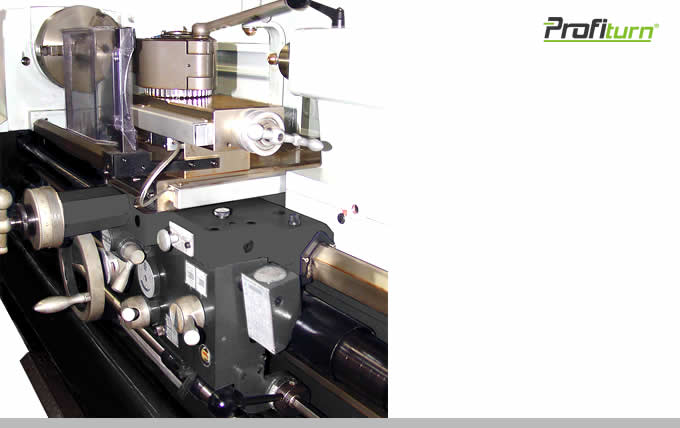

alfa metal machinery conventional lathe solid series profimach The cross slide

The tailstock, made of top quality, has a rigid construction, vibration absorbing and can easily travel along the bed guideways . A lead screw, driven by hand wheel, allows axial movement of the quill on a 120 mm maximum travel. It can be set eccentrically with max. ±13 mm for cutting.

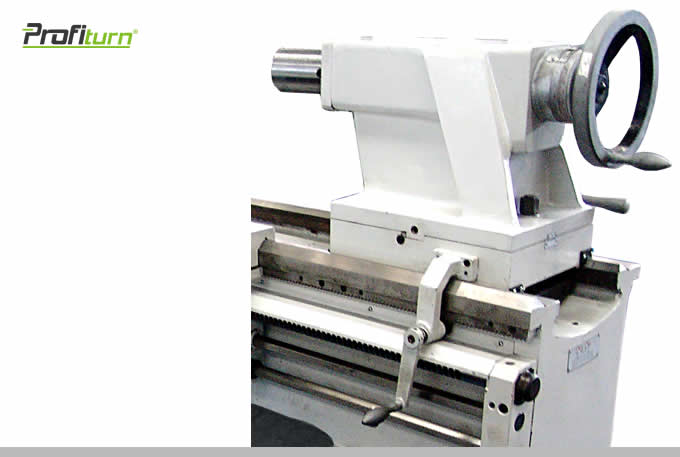

alfa metal machinery conventional lathe solid series profimach The tailstock

A centralized lubrication installation provides the gear box and feedbox lubrication.The carriage and the slides are lubricated from a pump fixed inside the carriage.

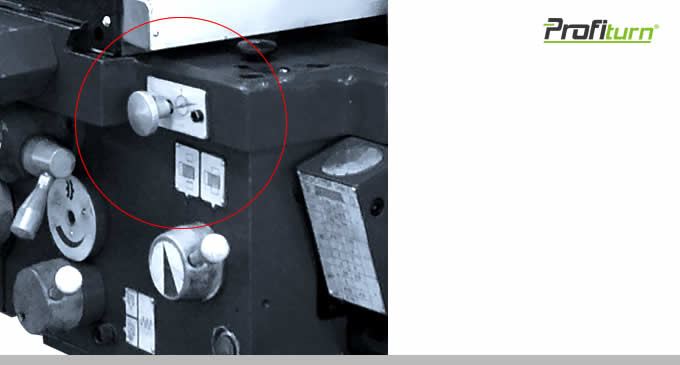

alfa metal machinery conventional lathe solid series profimach A centralized lubrication installation

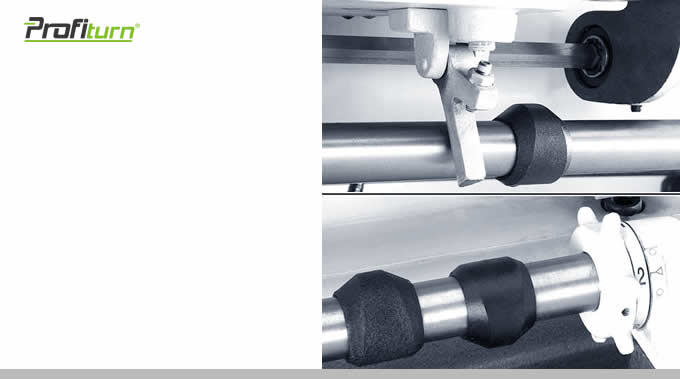

Use the four-position apron stop for disengaging the apron automatically at up to four different apron locations. You can tighten the eccentrics in place on the rod, each at different rotated positions, so each eccentric corresponds with a number on the dial.

alfa metal machinery conventional lathe solid series profimach

The steady rest serves as a support for long shafts (length to diameter ratio of 3:1 or greater). The steady rest can be placed anywhere along the length of the workpiece.

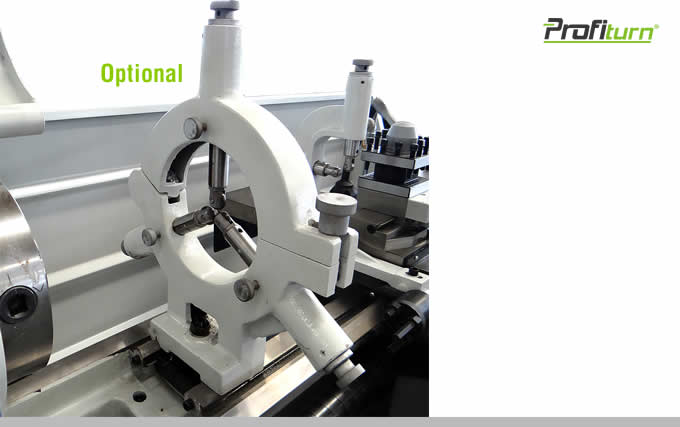

alfa metal machinery conventional lathe solid series profimach steady rest
