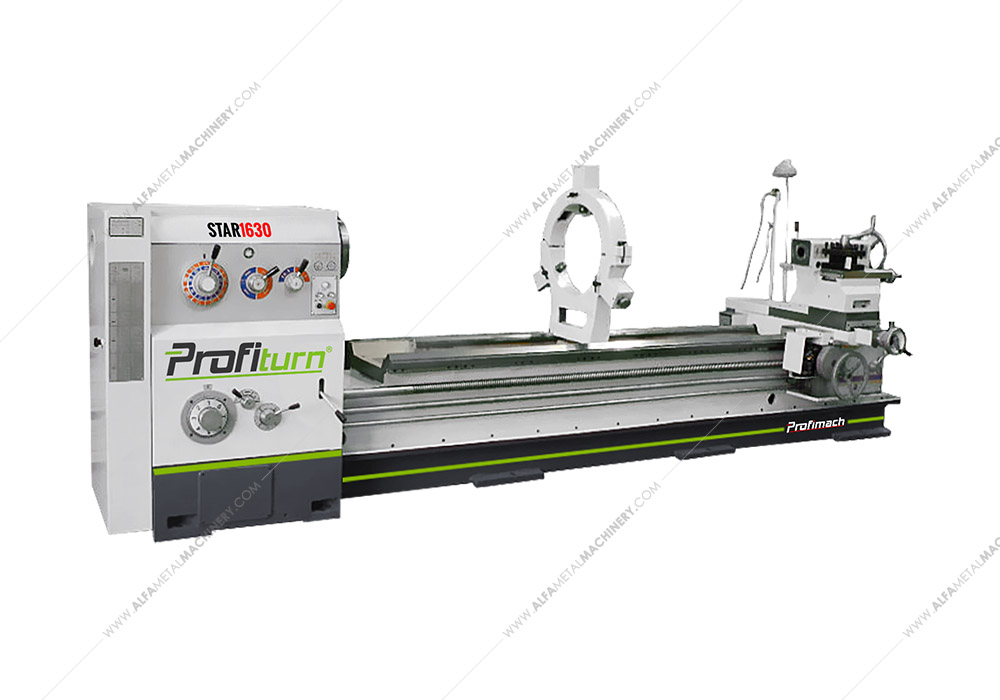

Light Duty Big Diameter Universal Lathes
Distance between centers(mm): 1500 2000 3000 4500 6000
The lathe is suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.
| Parameter | Unit |
| Width of bed | mm |
| Swing over bed | mm |
| Swing over gap | mm |
| Spindle nose | |
| Spindle speed range | rpm |
| Distance between centers | mm |
| Main power | kW |
| Cross slide travel | mm |
| Top slide travel | mm |
| Tailstock - dia. of center quill | mm |
| Tailstock - max. travel of center quill | mm |
| Machine dimensions (LxWxH) | m |
| Machine weight | kg |
STAR PT-061-1630 615 1630 1800 C11/D11 6-480 1500 2000 3000 4500 6000 11 815 300 120 270 3.8/4.3/5.1/6.6/8.2x2.1x2.2 7800 8200 8900 9800 10500
INCREASE THE PRODUCTIVITY,
WITH CSS+CVS+DRO MODULE INSTALLED ON A PROFITURN LATHE
The latest CSS+CVS Digital Readout System gives you productivity gains up to 25% on PROFITURN lathes over conventional engine lathes.
Only PROFITURN Toolroom Lathes gives you features that will let you achieve cutting performance similar to a CNC lathe. CSS + CSV automatically controls spindle speed during machining, allowing high performance tooling and very high cutting speeds during finishing operations.
- Extended tool life do to optimum cutting speeds
- 25% productivity increase
- Gain full use of high performance cutting tools
- Better surface finish
